Boosting Classifier Comparison

This script compares the performance of various boosting classifiers, including Gradient Boosting, AdaBoost, XGBoost, and LightGBM. Also sklearns version of AdaBoost is compared.

The script generates a synthetic dataset, trains multiple models, measures execution time, computes classification accuracy, and visualizes loss curves and ROC curves.

•
•
•
•
•
•

GBM time with 50 weak learners: 1.92 seconds
gradientboost accuracy:  0.8333333134651184
Adaboost time with 50 weak learners: 1.66 seconds
adaboost accuracy:  0.8333333134651184
SKlearn adaboost time with 50 weak learners: 0.08 seconds
sklearn accuracy:  0.8500000238418579
XGBoost time with 50 weak learners: 2.45 seconds
XGBoost accuracy:  0.8500000238418579
LGBM time with 200 weak learners: 1.71 seconds
LGBM accuracy:  0.7666666507720947

import torch
from sklearn import datasets
import matplotlib.pyplot as plt
from sklearn.ensemble import AdaBoostClassifier as sk_AdaBoostClassifier, GradientBoostingClassifier as sk_GradientBoostingClassifier
from sklearn.tree import DecisionTreeClassifier
from time import perf_counter

from DLL.MachineLearning.SupervisedLearning.Trees import GradientBoostingClassifier, AdaBoostClassifier, XGBoostingClassifier, LGBMClassifier
from DLL.Data.Preprocessing import data_split
from DLL.Data.Metrics import accuracy, roc_curve, auc

n_classes = 2
X, y = datasets.make_blobs(n_samples=200, n_features=2, cluster_std=3, centers=n_classes, random_state=3)

x_train, y_train, _, _, x_test, y_test = data_split(torch.from_numpy(X).to(dtype=torch.float32), torch.from_numpy(y), train_split=0.7, validation_split=0.0)

model = GradientBoostingClassifier(n_trees=50, max_depth=1, learning_rate=0.5, loss="log_loss")
start = perf_counter()
history = model.fit(x_train, y_train)
print(f"GBM time with {model.n_trees} weak learners: {perf_counter() - start:.2f} seconds")
y_pred_proba = model.predict_proba(x_test)
y_pred = model.predict(x_test)
print("gradientboost accuracy: ", accuracy(y_pred, y_test))

model2 = AdaBoostClassifier(n_trees=50, max_depth=1)
start = perf_counter()
errors = model2.fit(x_train, y_train, verbose=False)
print(f"Adaboost time with {model2.n_trees} weak learners: {perf_counter() - start:.2f} seconds")
y_pred_proba2 = model2.predict_proba(x_test)
y_pred2 = model2.predict(x_test)
print("adaboost accuracy: ", accuracy(y_pred2, y_test))

model3 = sk_AdaBoostClassifier(estimator=DecisionTreeClassifier(max_depth=1), learning_rate=0.5)
# model3 = sk_GradientBoostingClassifier()
start = perf_counter()
model3.fit(x_train.numpy(), y_train.numpy())
print(f"SKlearn adaboost time with 50 weak learners: {perf_counter() - start:.2f} seconds")
pred3 = torch.from_numpy(model3.predict(x_test.numpy()))
print("sklearn accuracy: ", accuracy(pred3, y_test))

model4 = XGBoostingClassifier(n_trees=50, learning_rate=0.5, reg_lambda=0.01, max_depth=1, loss="log_loss")
start = perf_counter()
history4 = model4.fit(x_train, y_train)
print(f"XGBoost time with {model4.n_trees} weak learners: {perf_counter() - start:.2f} seconds")
y_pred_proba4 = model4.predict_proba(x_test)
y_pred4 = model4.predict(x_test)
print("XGBoost accuracy: ", accuracy(y_pred4, y_test))

model5 = LGBMClassifier(n_trees=200, learning_rate=0.2, reg_lambda=0.01, max_depth=1, loss="log_loss", large_error_proportion=0.5, small_error_proportion=0.2)
start = perf_counter()
history5 = model5.fit(x_train, y_train)
print(f"LGBM time with {model5.n_trees} weak learners: {perf_counter() - start:.2f} seconds")
y_pred_proba5 = model5.predict_proba(x_test)
y_pred5 = model5.predict(x_test)
print("LGBM accuracy: ", accuracy(y_pred5, y_test))

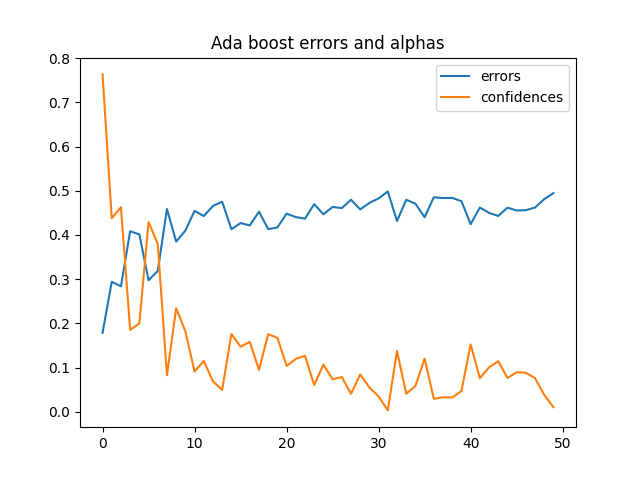

plt.title("Ada boost errors and alphas")
plt.plot(errors, label="errors")
plt.plot(model2.confidences, label="confidences")
plt.legend()

if n_classes == 2:
    plt.figure()
    plt.plot(history["loss"])
    plt.ylabel("Loss")
    plt.xlabel("Tree")

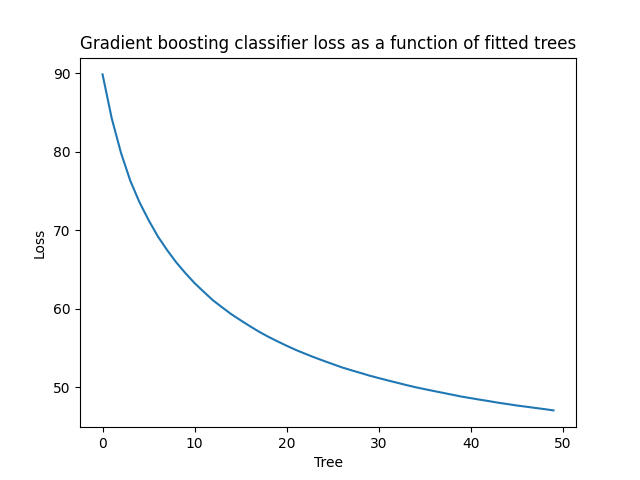

    plt.title("Gradient boosting classifier loss as a function of fitted trees")

    plt.figure()
    plt.plot(history4["loss"])
    plt.ylabel("Loss")
    plt.xlabel("Tree")

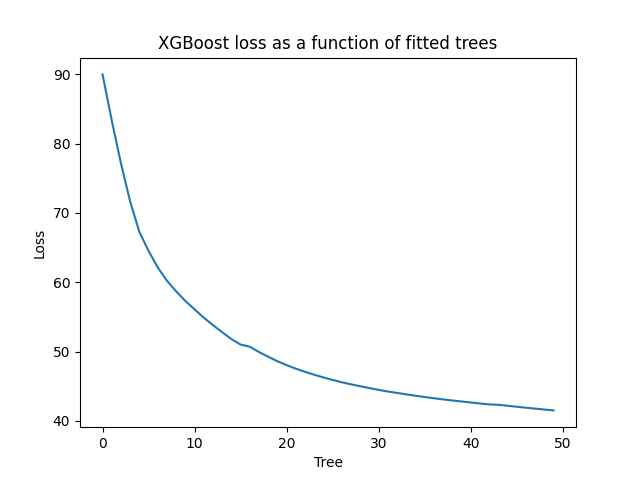

    plt.title("XGBoost loss as a function of fitted trees")

    plt.figure()
    plt.plot(history5["loss"])
    plt.ylabel("Loss")
    plt.xlabel("Tree")

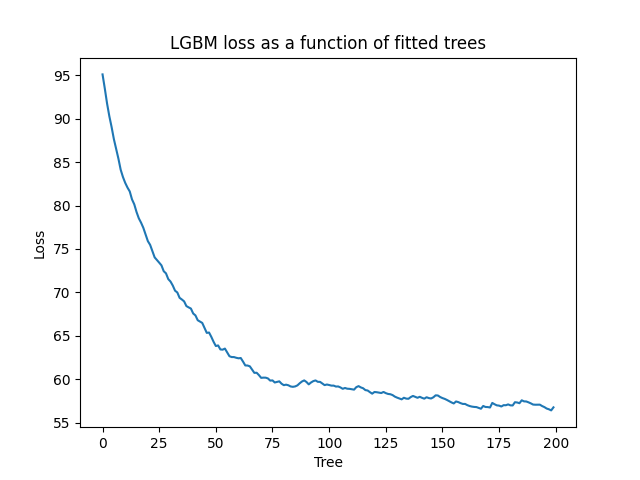

    plt.title("LGBM loss as a function of fitted trees")

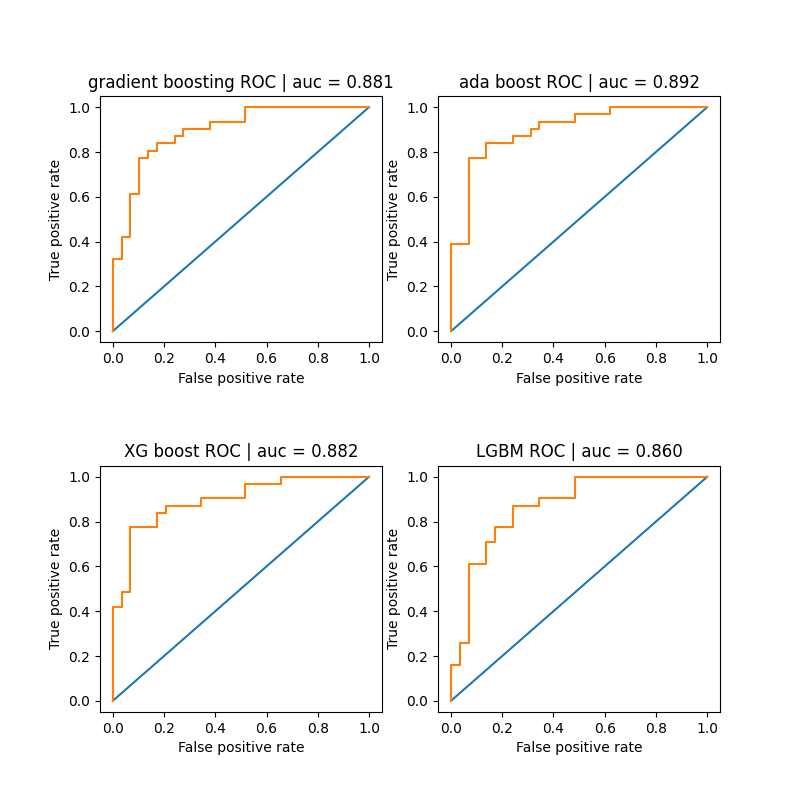

    thresholds = torch.linspace(0, 1, 100)
    fpr, tpr = roc_curve(y_pred_proba, y_test, thresholds)
    fpr2, tpr2 = roc_curve(y_pred_proba2, y_test, thresholds)
    fpr4, tpr4 = roc_curve(y_pred_proba4, y_test, thresholds)
    fpr5, tpr5 = roc_curve(y_pred_proba5, y_test, thresholds)
    fig, ax = plt.subplots(2, 2, figsize=(8, 8))
    plt.subplots_adjust(hspace=0.5)
    ax = ax.ravel()
    ax[0].set_title(f"gradient boosting ROC | auc = {auc(fpr, tpr):.3f}")
    ax[0].plot([0, 1], [0, 1])
    ax[0].step(fpr, tpr)
    ax[0].set_xlabel("False positive rate")
    ax[0].set_ylabel("True positive rate")

    ax[1].set_title(f"ada boost ROC | auc = {auc(fpr2, tpr2):.3f}")
    ax[1].plot([0, 1], [0, 1])
    ax[1].step(fpr2, tpr2)
    ax[1].set_xlabel("False positive rate")
    ax[1].set_ylabel("True positive rate")

    ax[2].set_title(f"XG boost ROC | auc = {auc(fpr4, tpr4):.3f}")
    ax[2].plot([0, 1], [0, 1])
    ax[2].step(fpr4, tpr4)
    ax[2].set_xlabel("False positive rate")
    ax[2].set_ylabel("True positive rate")

    ax[3].set_title(f"LGBM ROC | auc = {auc(fpr5, tpr5):.3f}")
    ax[3].plot([0, 1], [0, 1])
    ax[3].step(fpr5, tpr5)
    ax[3].set_xlabel("False positive rate")
    ax[3].set_ylabel("True positive rate")

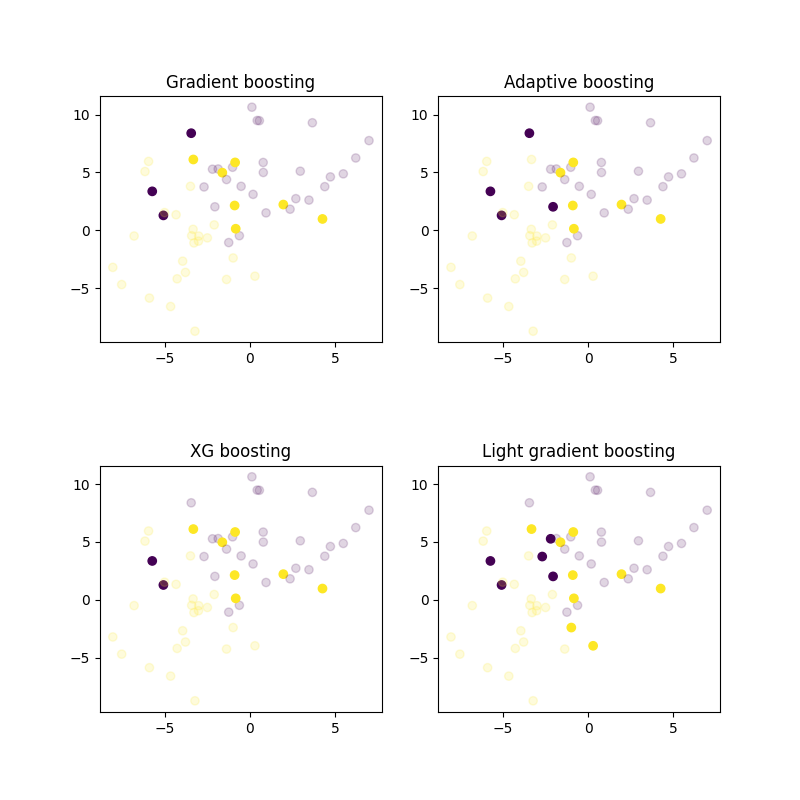

fig, ax = plt.subplots(2, 2, figsize=(8, 8))
plt.subplots_adjust(hspace=0.5)
ax = ax.ravel()
ax[0].scatter(x_test[:, 0], x_test[:, 1], c=y_test, alpha=((model.predict(x_test) != y_test) + 0.2) / 1.2)
ax[0].set_title("Gradient boosting")
ax[1].scatter(x_test[:, 0], x_test[:, 1], c=y_test, alpha=((model2.predict(x_test) != y_test) + 0.2) / 1.2)
ax[1].set_title("Adaptive boosting")
ax[2].scatter(x_test[:, 0], x_test[:, 1], c=y_test, alpha=((model4.predict(x_test) != y_test) + 0.2) / 1.2)
ax[2].set_title("XG boosting")
ax[3].scatter(x_test[:, 0], x_test[:, 1], c=y_test, alpha=((model5.predict(x_test) != y_test) + 0.2) / 1.2)
ax[3].set_title("Light gradient boosting")
plt.show()
